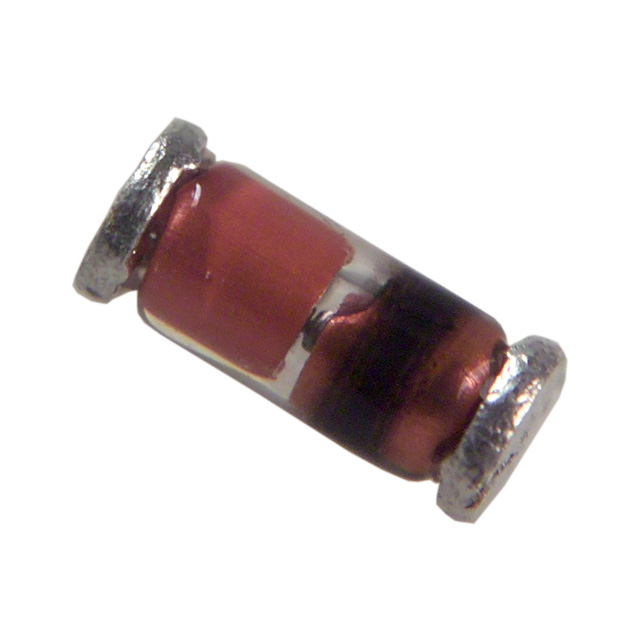

ZMM5230B-7
Diodes Inc.
Zener Diode Single 4.7V 5% 19Ohm 500mW 2-Pin Mini-MELF T/R / DIODE ZENER 4.7V 500MW MINIMELF
Need a quote for ZMM5230B-7
Mobius holds none of this part in its own stock. Send the quantity you need and the Mobius team sources it for you.
Sell your excess ZMM5230B-7
Recover value for your excess stock by selling on Mobius. Painless quick process selling direct to other manufacturers with transparent fees.
Buying from Mobius
Inspection Report Included
We inspect all parts rigorously and will provide you with a report on request.
14 day Returns
Inspect parts for 14 days after purchase and return them if you find any issues.
Free Resale
Buy too much? We'll resell them on our site at no cost to you.
Read our FAQs or
Product Specifications for ZMM5230B-7
Type
Spec
Body Material
Glass
Composition
Zener
Element Configuration
Single
Forward Voltage
1.5 V
Height
1.6 mm
Impedance
19 Ω
Lead Free
Lead Free
Length
3.7 mm
Max Operating Temperature
175 °C
Max Power Dissipation
500 mW
Max Reverse Leakage Current
5 µA
Min Operating Temperature
-65 °C
Mount
Surface Mount
Number of Elements
1
Number of Pins
2
Number of Terminals
2
Packaging
Cut Tape
Peak Reverse Current
5 µA
Polarity
Unidirectional
Power Dissipation
500 mW
Power Rating
500 mW
Radiation Hardening
No
REACH SVHC
Yes
Reference Voltage
4.7 V
RoHS
Compliant
Test Current
20 mA
Tolerance
5 %
Voltage Rating (DC)
4.7 V
Voltage Tolerance
5 %
Weight
33.991078 mg
Width
1.6 mm
Working Voltage
4.7 V
Zener Current
20 mA
Zener Voltage
4.7 V
