Need a quote for ZXMN6A11ZTA
Mobius holds none of this part in its own stock. Send the quantity you need and the Mobius team sources it for you.
Sell your excess ZXMN6A11ZTA
Recover value for your excess stock by selling on Mobius. Painless quick process selling direct to other manufacturers with transparent fees.
Buying from Mobius
Inspection Report Included
We inspect all parts rigorously and will provide you with a report on request.
14 day Returns
Inspect parts for 14 days after purchase and return them if you find any issues.
Free Resale
Buy too much? We'll resell them on our site at no cost to you.
Read our FAQs or
Product Specifications for ZXMN6A11ZTA
Type
Spec

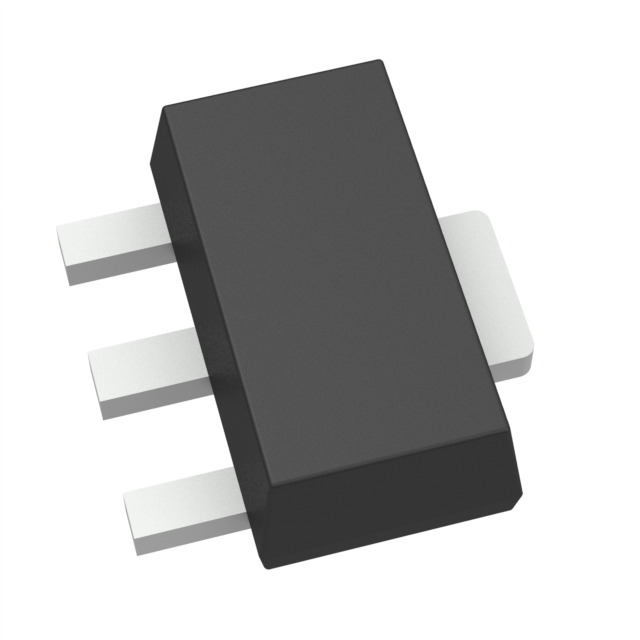

Case/Package
SOT-89-3
Continuous Drain Current (ID)
3.6 A
Current Rating
2.8 A
Drain to Source Breakdown Voltage
60 V
Drain to Source Resistance
180 mΩ
Drain to Source Voltage (Vdss)
60 V
Element Configuration
Single
Fall Time
4.6 ns
Gate to Source Voltage (Vgs)
20 V
Height
1.6 mm
Input Capacitance
330 pF
Lead Free
Lead Free
Length
4.6 mm
Max Operating Temperature
150 °C
Max Power Dissipation
2.6 W
Min Operating Temperature
-55 °C
Mount
Surface Mount
Number of Channels
1
Number of Elements
1
Number of Pins
3
Radiation Hardening
No
Rds On Max
120 mΩ
Resistance
120 mΩ
Rise Time
3.5 ns
RoHS
Compliant
Schedule B
8541290080, 8541290080|8541290080|8541290080|8541290080|8541290080
Turn-Off Delay Time
8.2 ns
Turn-On Delay Time
1.95 ns
Voltage Rating (DC)
60 V
Weight
130.492855 mg
Width
2.6 mm
