ZXMP7A17KTC
Diodes Inc.

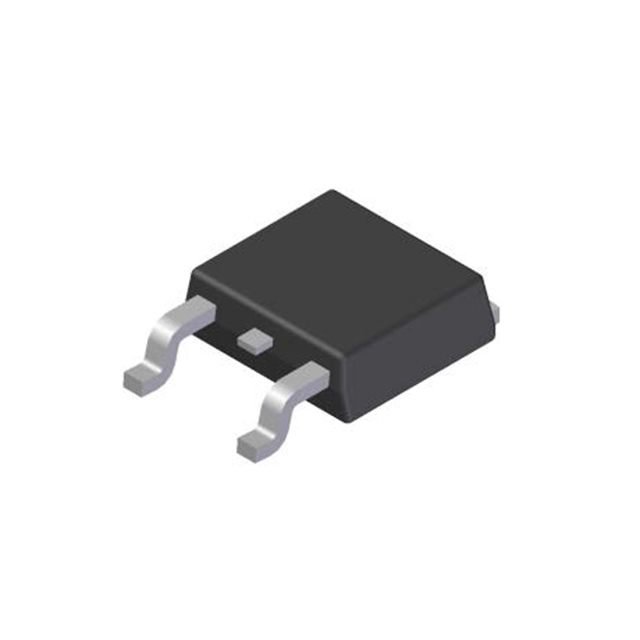

ZXMP7A17K Series P-Channel 70 V 0.16 Ohm Power MOSFET Surface Mount - TO-252-3
Need a quote for ZXMP7A17KTC
Mobius holds none of this part in its own stock. Send the quantity you need and the Mobius team sources it for you.
Sell your excess ZXMP7A17KTC
Recover value for your excess stock by selling on Mobius. Painless quick process selling direct to other manufacturers with transparent fees.
Buying from Mobius
Inspection Report Included
We inspect all parts rigorously and will provide you with a report on request.
14 day Returns
Inspect parts for 14 days after purchase and return them if you find any issues.
Free Resale
Buy too much? We'll resell them on our site at no cost to you.
Read our FAQs or
Product Specifications for ZXMP7A17KTC
Type
Spec
Case/Package
TO-252-3
Continuous Drain Current (ID)
3.8 A
Current Rating
-5.7 A
Drain to Source Breakdown Voltage
-70 V
Drain to Source Resistance
160 mΩ
Drain to Source Voltage (Vdss)
70 V
Element Configuration
Single
Fall Time
8 ns
Gate to Source Voltage (Vgs)
20 V
Height
2.39 mm
Input Capacitance
635 pF
Lead Free
Lead Free
Length
6.73 mm
Max Operating Temperature
150 °C
Max Power Dissipation
9.25 W
Min Breakdown Voltage
70 V
Min Operating Temperature
-55 °C
Mount
Surface Mount
Number of Channels
1
Number of Elements
1
Number of Pins
3
Number of Terminals
2
Packaging
Cut Tape
Power Dissipation
9.25 W
Radiation Hardening
No
Rds On Max
160 mΩ
REACH SVHC
No
Resistance
160 mΩ
Rise Time
3.4 ns
RoHS
Compliant
Schedule B
8541290080, 8541290080|8541290080|8541290080|8541290080|8541290080
Turn-Off Delay Time
27.9 ns
Turn-On Delay Time
2.5 ns
Voltage Rating (DC)
-70 V
Weight
3.949996 g
Width
6.22 mm
