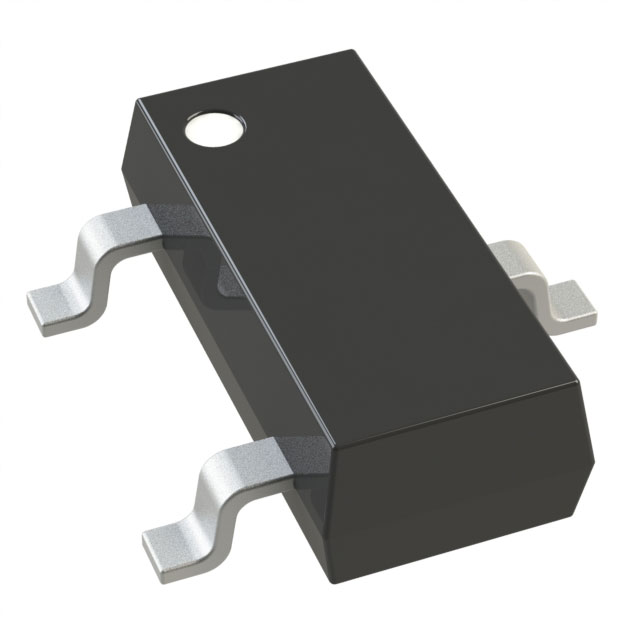

Product Specifications for ZXMN10A07FTA
Type
Spec
Case/Package
SOT-23-3
Continuous Drain Current (ID)
700 mA
Current
8 A
Current Rating
800 mA
Drain to Source Breakdown Voltage
100 V
Drain to Source Resistance
700 mΩ
Drain to Source Voltage (Vdss)
100 V
Element Configuration
Single
Fall Time
1.5 ns
Gate to Source Voltage (Vgs)
20 V
Height
1.1 mm
Input Capacitance
138 pF
Lead Free
Lead Free
Length
3.04 mm
Max Junction Temperature (Tj)
150 °C
Max Operating Temperature
150 °C
Max Power Dissipation
806 mW
Min Breakdown Voltage
100 V
Min Operating Temperature
-55 °C
Mount
Surface Mount
Number of Channels
1
Number of Elements
1
Number of Pins
3
Number of Terminals
3
Packaging
Cut Tape
Power Dissipation
625 mW
Radiation Hardening
No
Rds On Max
700 mΩ
REACH SVHC
Yes
Resistance
700 mΩ
Rise Time
1.5 ns
RoHS
Compliant
Schedule B
8541210080, 8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080, 8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080, 8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080
Turn-Off Delay Time
4.1 ns
Turn-On Delay Time
1.8 ns
Voltage
100 V
Voltage Rating (DC)
100 V
Weight
7.994566 mg
Width
1.4 mm
