Product Specifications for ZXMN6A09KTC
Type
Spec

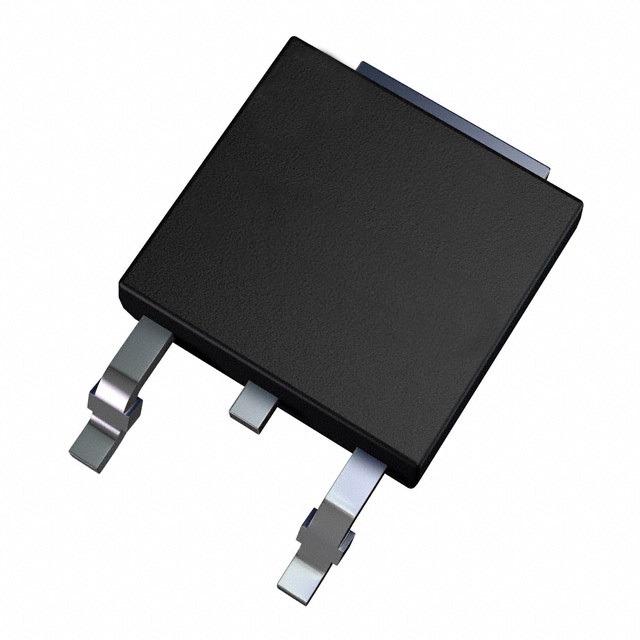

Case/Package
TO-252-3
Current Rating
11.2 A
Drain to Source Breakdown Voltage
60 V
Drain to Source Voltage (Vdss)
60 V
Element Configuration
Single
Fall Time
14.5 ns
Gate to Source Voltage (Vgs)
20 V
Height
2.39 mm
Input Capacitance
1.426 nF
Lead Free
Lead Free
Length
6.73 mm
Max Operating Temperature
150 °C
Max Power Dissipation
10.1 W
Min Operating Temperature
-55 °C
Mount
Surface Mount
Number of Channels
1
Number of Elements
1
Number of Pins
3
Packaging
Cut Tape
Radiation Hardening
No
Rds On Max
40 mΩ
Resistance
40 mΩ
Rise Time
4.6 ns
RoHS
Compliant
Turn-Off Delay Time
32.5 ns
Turn-On Delay Time
4.8 ns
Voltage Rating (DC)
60 V
Weight
3.949996 g
Width
6.22 mm
