Product Specifications for ZXTN4004KTC
Type
Spec
Case/Package

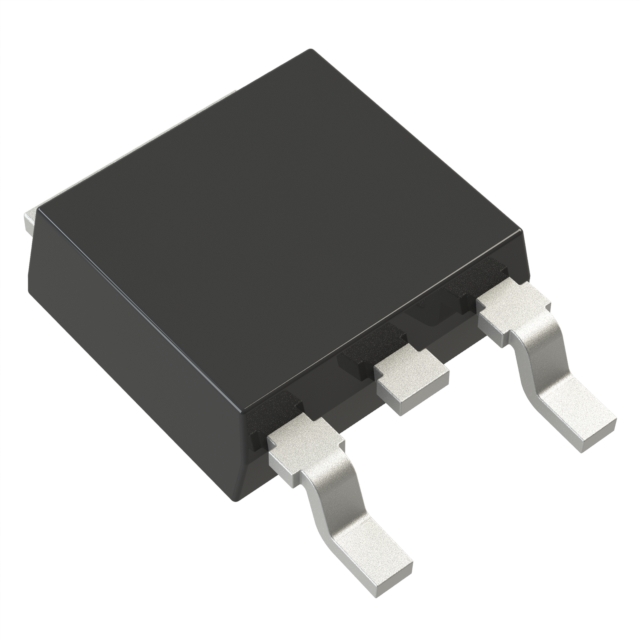

TO-252
Collector Base Voltage (VCBO)
150 V
Collector Emitter Breakdown Voltage
150 V
Collector Emitter Voltage (VCEO)
150 V
Continuous Collector Current
1 A
Element Configuration
Single
Emitter Base Voltage (VEBO)
7 V
Height
6.2 mm
hFE Min
100
Lead Free
Lead Free
Length
6.7 mm
Max Breakdown Voltage
150 V
Max Collector Current
1 A
Max Operating Temperature
150 °C
Max Power Dissipation
3.8 W
Min Operating Temperature
-55 °C
Mount
Surface Mount
Number of Elements
1
Number of Pins
3
Packaging
Tape & Reel
Polarity
NPN
Power Dissipation
3.8 W
Radiation Hardening
No
RoHS
Compliant
Schedule B
8541290080
Weight
1.799996 g
Width
2.39 mm
