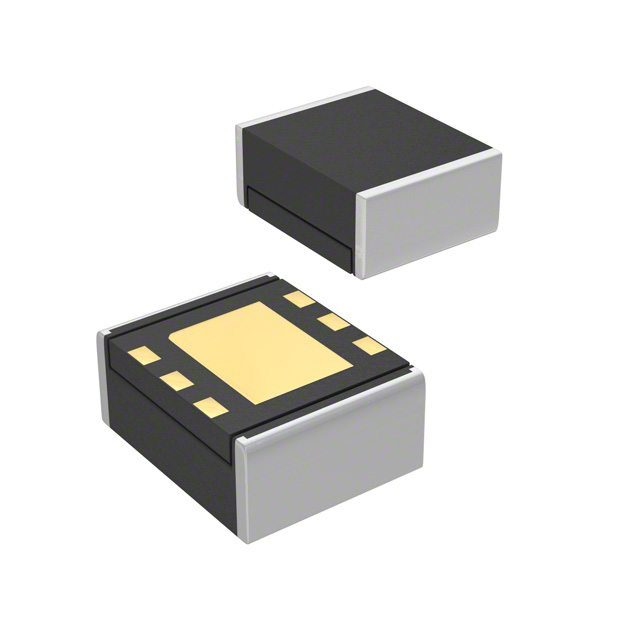

Product Specifications for XCL202B181BR-G
Type
Spec
Case Code (Imperial)
1008
Case Code (Metric)
2520
Case/Package
1008
Efficiency
92 %
Features
UVLO
Height
1.016 mm
Height - Seated (Max)
1.04 mm
Length
2.5 mm
Max Input Voltage
6 V
Max Operating Temperature
85 °C
Max Output Current
400 mA
Max Output Voltage
1.836 V
Max Supply Current
33 µA
Max Switching Frequency
1.38 MHz
Min Input Voltage
2 V
Min Operating Temperature
-40 °C
Min Output Voltage
1.764 V
Mount
Surface Mount
Nominal Input Voltage
4.2 V
Nominal Output Voltage
1.8 V
Number of Channels
1
Number of Circuits
1
Number of Outputs
1
Number of Terminals
8
Output Current
400 mA
Output Type
Fixed
Output Voltage
1.8 V
Packaging
Digi-Reel®
REACH SVHC
Yes
RoHS
Compliant
Switching Frequency
1.38 MHz
Terminal Pitch
550 µm
Topology
Buck
Voltage - Output 1
1.8 V
Width
2 mm
