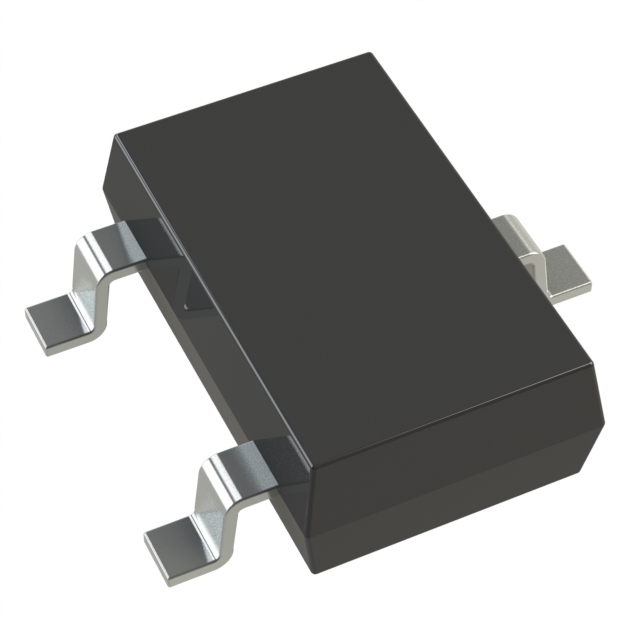

ZXRE330ASA-7
Diodes Inc.
EAR99 ZXRE330 Tape & Reel (TR) 2014 voltage reference device 2muA 3.3V 55muVrms 150ppm/C
Need a quote for ZXRE330ASA-7
Mobius holds none of this part in its own stock. Send the quantity you need and the Mobius team sources it for you.
Sell your excess ZXRE330ASA-7
Recover value for your excess stock by selling on Mobius. Painless quick process selling direct to other manufacturers with transparent fees.
Buying from Mobius
Inspection Report Included
We inspect all parts rigorously and will provide you with a report on request.
14 day Returns
Inspect parts for 14 days after purchase and return them if you find any issues.
Free Resale
Buy too much? We'll resell them on our site at no cost to you.
Read our FAQs or
Product Specifications for ZXRE330ASA-7
Type
Spec
Ambient Temperature Range High
85 °C
Case/Package
SOP
Cathode Current
2 µA
Height
1.1 mm
Height - Seated (Max)
1.1 mm
Length
2.9 mm
Max Junction Temperature (Tj)
150 °C
Max Operating Temperature
85 °C
Max Output Voltage
3.3165 V
Max Power Dissipation
300 mW
Min Operating Temperature
-40 °C
Min Output Voltage
3.2835 V
Mount
Surface Mount
Nominal Output Voltage
3.3 V
Number of Circuits
1
Number of Outputs
1
Number of Pins
3
Number of Terminals
3
Output Current
5 mA
Output Type
Fixed
Output Voltage
3.3 V
Packaging
Tape & Reel (TR)
REACH SVHC
Yes
Reference Type
Shunt
RoHS
Compliant
Schedule B
8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000
Temperature Coefficient
150 ppm/°C
Terminal Pitch
915 µm
Tolerance
0.5 %
Width
1.3 mm
